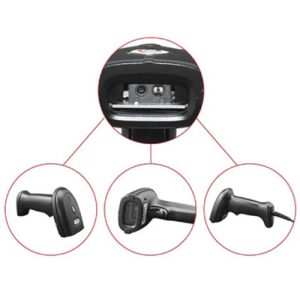

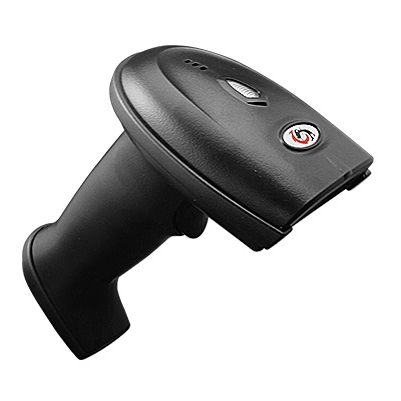

Sunlux XL-3600 1D-2D Handheld Barcode Scanner

Sunlux XL-3600 1D-2D Handheld Barcode Scanner

Full Specification:

Item: Barcode Scanner

Model: ✅ XL-3600

Light Source: Red LED Marking Light White, LED Lighting

Scanning Speed: 30fps

Scanning Pattern: 2D, Standard 1D Code

Display 4 mil

Battery Electricity Power

Connectivity: USB, Rs232, USB-VCP

Dimension: 175 x 73 x 102mm

Image Sensor: CMOS

Scan Mode: Manual & Continuous

Image Size: 6400480 Pie

Scan Speed: 30 Fps

Decoding Depth: 40-220mm

Print Contrast Signal: 15%

Indicator: LED Indicator and Buzzer

Drop Test: 1.5m

Light Levels: 0 – 100.000 Lux

Scan Angle

Case Material: ABS.PC

Cable Standard: An

Input Voltage: DC 5V

Working Current: 230mA

Stand-By Current: 150mA

Temperature (Operating): .10T-55t C

Temperature (Storage): -20-60 degrees

Humidity: 5% To 95% (Non-Condensing)

Rotation

360° Tilt: E507

Deflection: 450

Field Of Mew Angle

Horizontal 36 degree

Vertical 23 degree

Decoding Capability

10: UPC-A, UPC-E EAN-8, EAN-13, Code39, Code bar, Code126

Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 Of 5 Code 93

UCC/EAN 128, Code 11 MSI UK/Plessey, ISBN/ISSN

GS1 Data bar Expanded, GS1 Data bar GS1 Weber

25: OR Code, PDF 417, Data matrix

Description:

Sunlux XL-3600 handheld barcode scanner has a 1D / 2D image scanner with CMOS that gives fast, careful, and faultless readings. It has a scan speed of approximately 30 frames per second and a focal length of 40220mm. The case is built with ABS+PC material. Its ergonomic ID is designed for the operator’s comfort and durability. It scans barcodes on mobile phones, tablets, or computer screens.
