Zebra ZD421 300dpi Desktop Barcode Printer

Full Specification

• Standard Features
  • Print methods: Thermal Transfer or Direct Thermal
  • Programming languages: ZPL and EPL
  • User Interface: 5 status icons, 3 button UI
  • Real-Time Clock: Yes
  • PDF Direct: Yes
  • Energy Star Certified: Yes
  • Media Loading: Open ACCESS for easy media loading
  • Frame Construction: Dual-wall frame construction
  • Label Design Tool: Zebra Designer Essentials
  • Mobile App: Printer setup mobile app for Android and iOS via BLE
• Printer Specifications
• Operating System: Link-OS
• Resolution
  • 203 dpi/8 dots per mm
  • 300 dpi/12 dots per mm (optional)
• Memory
  • 512 MB Flash
  • 256MB SDRAM
  • 64 MB user available non-volatile
  • 8 MB user available SDRAM
• Maximum Print Width
  • 104 mm for 203 dpi
  • 108 mm for 300 dpi
  • Cartridge: 104 mm for 203 and 300 dpi
• Maximum Print Speed
  • 152 mm per second (203 dpi)
  • 102 mm per second (300 dpi)
• Media Sensors: Full-width, moveable reflective/black mark sensor
• Multi-position transmissive/gap sensor
• Firmware: ZPL II, EPL 2,  XML, ZBI, PDF Direct
• Media, Ribbon, and Cartridge
  • Label Length
    • Maximum: 991 mm
    • Minimum: 6.4 mm
• Media Width
  • Direct Thermal: 15 mm to 108 mm
  • Thermal Transfer Roll: 15 mm to 112 mm
  • Thermal Transfer Cartridge: 15 mm to 118 mm
• Media Roll Size
  • Maximum outer diameter: 127 mm
  • Core inner diameter: 12.7 mm and 1.0  25.4 mm
  • Standard: 38.1mm, 50.8 mm and 3.0 76.2 mm using optional adapters
• Media
  • Thickness: 0.08 mm min., 0.19 mm max.
  • Types: Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
• Ribbon
  • Ribbon Outside Diameter: 66 mm (300 m), 34 mm (74 m)
  • Ribbon Standard Length Roll: 984 ft. (300 m); 243 ft. (74 m)
• Cartridge: 243 ft. (74 m)
• Ribbon Ratio
  • 1:4 ribbon to media (300 m)
  • 1:1 ribbon to media (74 m)
• Ribbon Width
  • Roll: 33.8 mm - 109.2 mm
  • Cartridge: 109.2 mm
• Ribbon Core I.D
  • 300-meter ribbon: 25.4 mm
  • 74-meter ribbon: 12.7 mm
• Operating System
  • Operating Temp.: 4.4° to 41° C
  • Storage Temp. -40° to 60° C
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Humidity: 5% to 95% non-condensing
  • Electrical
    • Auto-detectable (PFC Compliant) 100-240V AC, 50-60Hz
    • Energy Star-certified
    • Energy Efficiency Level VI
    • 2750mAh battery
    • Healthcare models include IEC60601-1 certified power supply
• Media Handling
  • Dispenser / Peeler: label peel and present with label present sensor
  • Cutter field installable
• Communications
  • Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), Serial RS-232 auto-sensing, DB-9
  • Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio
• Physical
  • Dimensions
    • Direct Thermal: 8.69 x 6.98 x 5.93 inch
    • Thermal Transfer Roll: 10.5 x 8.0 x 7.44 inch
    • Weight Direct Thermal: 1.35 kg
    • Thermal Transfer Roll: 2.05 kg
    • Thermal Transfer Cartridge: 2.3 kg

Description

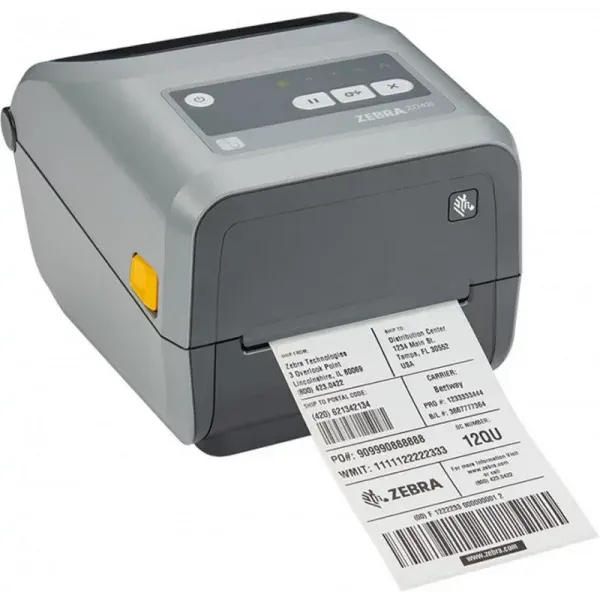

This Zebra ZD421 is a desktop barcode printer that contains thermal transfer and direct thermal printing technology. The labels on this printer are razor-sharp and crystal clear, perfect for high-resolution art. Moreover, it supports versatile printing such as thermal transfer and direct thermal printing methods and uses a 3-button interface and 5-status icon interface. It has a built-in real-time clock that accurately timestamps labels. This Zebra ZD421 printer uses Bluetooth Low Energy 5 connectivity to set up the printer with a mobile app for Android and iOS.
