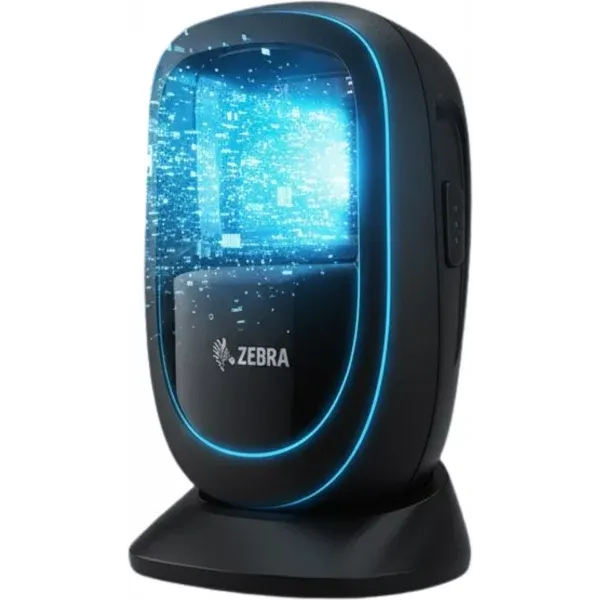

Zebra DS9308 Hands-Free Image Support Barcode Scanner

Zebra DS9308 Full Specification

• 1D, 2D, PDF417 decode capability
• 1280 x 800 pixels Image Sensor
• Hyper Red LED Illumination: 660nm
• Supports over 90 international keyboards
• Array Imager scanning technology
• Roll tolerance: 360-degree
• Environmental sealing: IP52
• 52° Horizontal, and 33° Vertical nominal Imager Field of View
• Barcode scanning provides protection against drops, dust, and spills
• 0 to 10000 foot-candles/0 to 107700 Lux Ambient Light
• Microprocessor: 800MHz
• Black color
• 318gm weight
• Operating Current
  • The presentation mode is 335mA
  • Trigger mode is 350mA
• Standby Current
  • The presentation mode is 135mA
  • Trigger mode is 75mA
• User Indicator
  • Good Decode LEDs, Rear View LEDs, Beeper

Zebra DS9308 Description

The Zebra DS9300 barcode scanner can scan all 1D / 2D / QR and e-Script codes at the point of sale for all-day reliability. The DS9308 barcode scanner can quickly and effectively record barcodes that are poorly printed, broken, crinkled, faded, truncated, and low contrast due to its 800 MHz microprocessor, high-resolution megapixel sensor, and unique PRZM Intelligent Imaging technology. Its LEDs dynamically adapt to the environment and automatically dim when not in use. Again if something is present in front of the barcode it becomes active. Also recessed and virtually invisible, which reduces eye irritation. The barcode scanner is designed to withstand a 1.5m drop from concrete and 1000 continuous 0.5m tumbles. It will also withstand any bumps and bruises that may occur in daily life.
