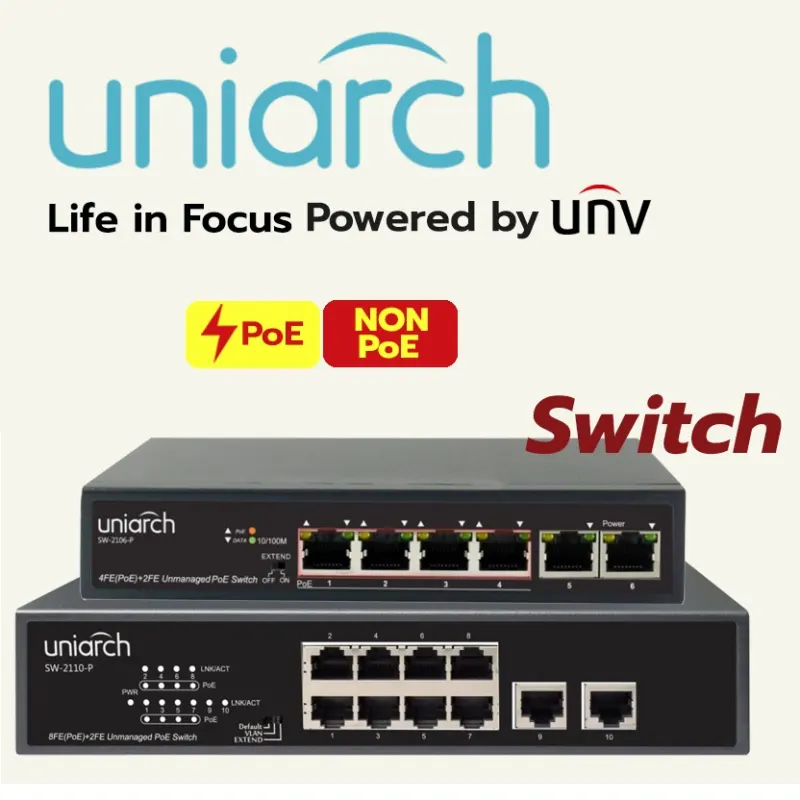

PoE Switch UNIARCH SW-2106-P

PoE Switch UNIARCH SW-2106-P

Model-SW-2106-P 4-Port PoE Switch      * Ports 6×100Mbps network ports (RJ45),including 4PoE ports * Switching capacity 1.2Gbps * Support port traffic controlUp to 250m transmission distance on surveillance mode    Support buffer optimization *All metal housing, safe and reliable * Max. PoE PowerMax capacity: 65W * Max capacity for single port: 30W

Specification

Model	Description
Ports	6×100Mbps network ports (RJ45), including 4 PoE ports
Standards	IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at
Switching capacity	1.2Gbps
Forwarding performance	0.90Mpps
Packet Buffer	768Kbit
MAC	2K
Dimensions (W×D×H)	160mm x 93mm x 32mm(6.3"×3.7"×1.3")
Weight	<0.6kg
Power supply	AC: 100-240V, 50/60Hz
PoE	802.3at/af
Max. PoE Power	Max capacity: 65W Max capacity for single port: 30W
Cooling Fans	0
Mean Time Between Failure(MTBF)	>50000 hours
Operating temperature	0°C-40°C (32°F-104°F)
Operating humidity	10%～90% (noncondensing)
Storage humidity	5%～90% (noncondensing)
Indicator	PWR: Steady on: AC input is normal Off: No AC input
	PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal
	LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data
	Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps
Working Mode	Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters.
